Specifications

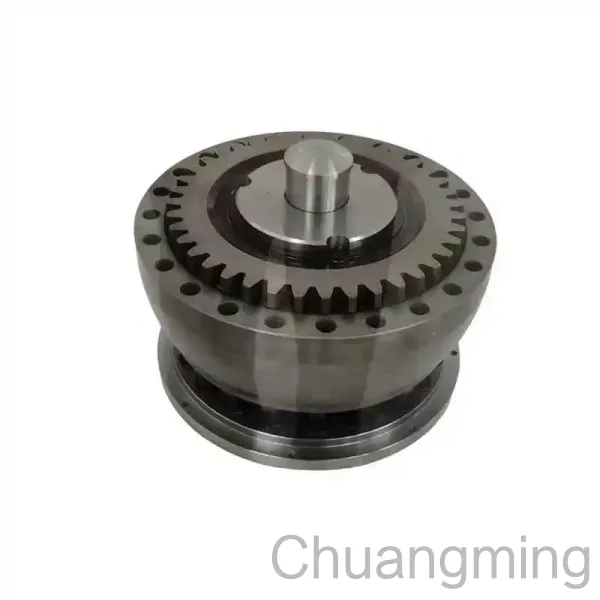

The heavy-duty axial drum gear coupling is designed for mechanical transmission systems that need to handle high axial forces and angular displacements under harsh working conditions. This coupling, through its unique structural design, can maintain good transmission performance while withstanding high axial forces (e.g., 600 kN) and large angular misalignments (e.g., >3 degrees), effectively reducing equipment wear and failure risks.



Key Features:

  1. High Axial Force Capacity: Capable of withstanding axial forces up to 600 kN, suitable for heavy-duty applications.
  2. Large Angular Misalignment Tolerance: Can tolerate angular misalignments greater than 3 degrees, making it ideal for installations with alignment deviations.
  3. Efficient Torque Transmission: The drum gear design ensures efficient torque transfer and reduces system vibrations.
  4. Durability: Made from high-strength materials and precision manufacturing techniques, it is capable of operating in harsh industrial environments with a long service life.
  5. Low Maintenance Requirements: The drum gear design helps reduce wear and tear, minimizing the frequency of daily maintenance and component replacements.



Application Fields:

  • Heavy machinery, such as mining equipment, metallurgy equipment, and marine power systems.
  • High-load transmission systems, especially in cases where large misalignments and vibrations need to be addressed.

The heavy-duty axial drum gear coupling is designed for mechanical transmission systems that need to handle high axial forces and angular displacements under harsh working conditions. This coupling, through its unique structural design, can maintain good transmission performance while withstanding high axial forces (e.g., 600 kN) and large angular misalignments (e.g., >3 degrees), effectively reducing equipment wear and failure risks.

Key Features:

  1. High Axial Force Capacity: Capable of withstanding axial forces up to 600 kN, suitable for heavy-duty applications.
  2. Large Angular Misalignment Tolerance: Can tolerate angular misalignments greater than 3 degrees, making it ideal for installations with alignment deviations.
  3. Efficient Torque Transmission: The drum gear design ensures efficient torque transfer and reduces system vibrations.
  4. Durability: Made from high-strength materials and precision manufacturing techniques, it is capable of operating in harsh industrial environments with a long service life.
  5. Low Maintenance Requirements: The drum gear design helps reduce wear and tear, minimizing the frequency of daily maintenance and component replacements.

Application Fields:

  • Heavy machinery, such as mining equipment, metallurgy equipment, and marine power systems.
  • High-load transmission systems, especially in cases where large misalignments and vibrations need to be addressed.
